Description

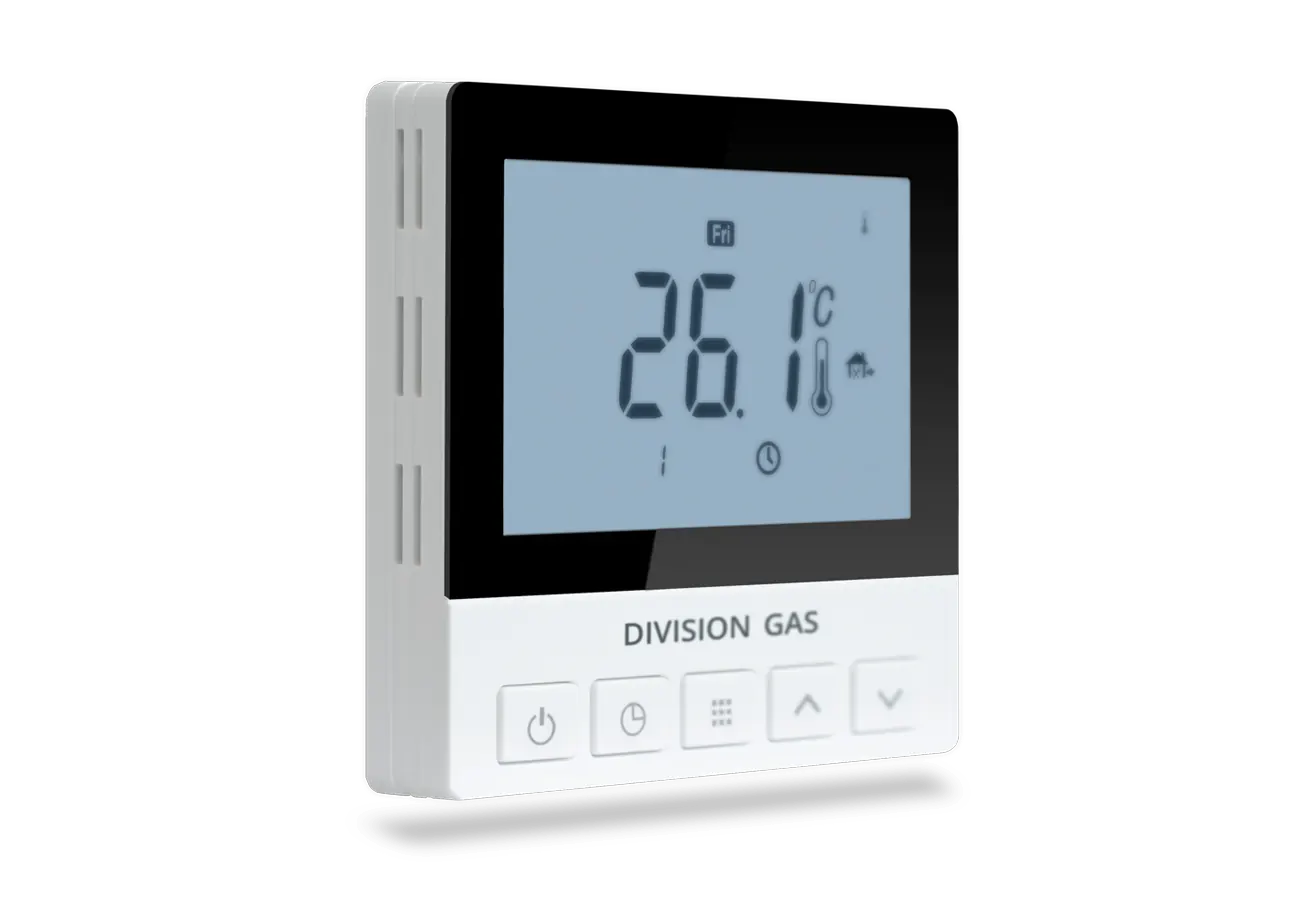

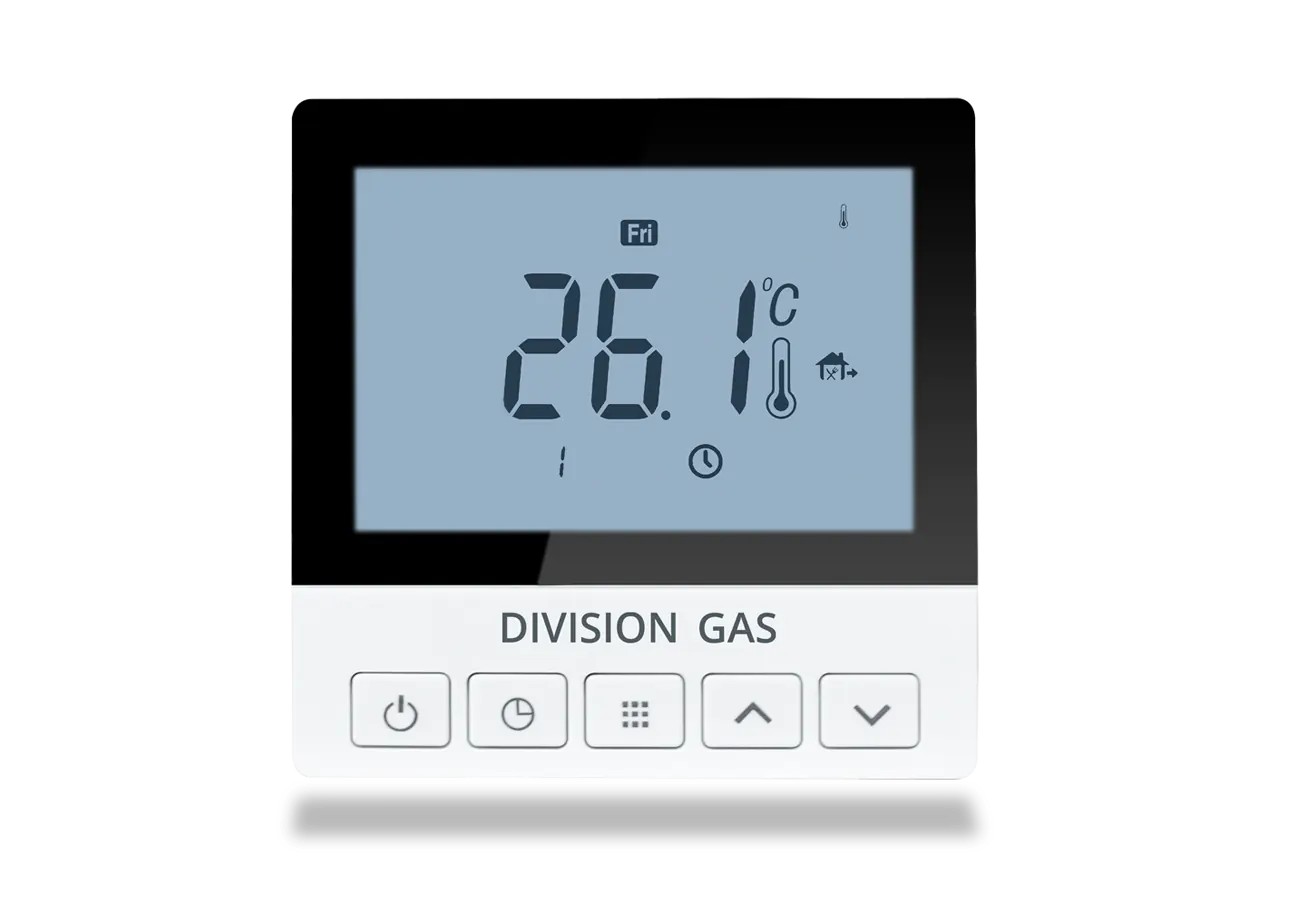

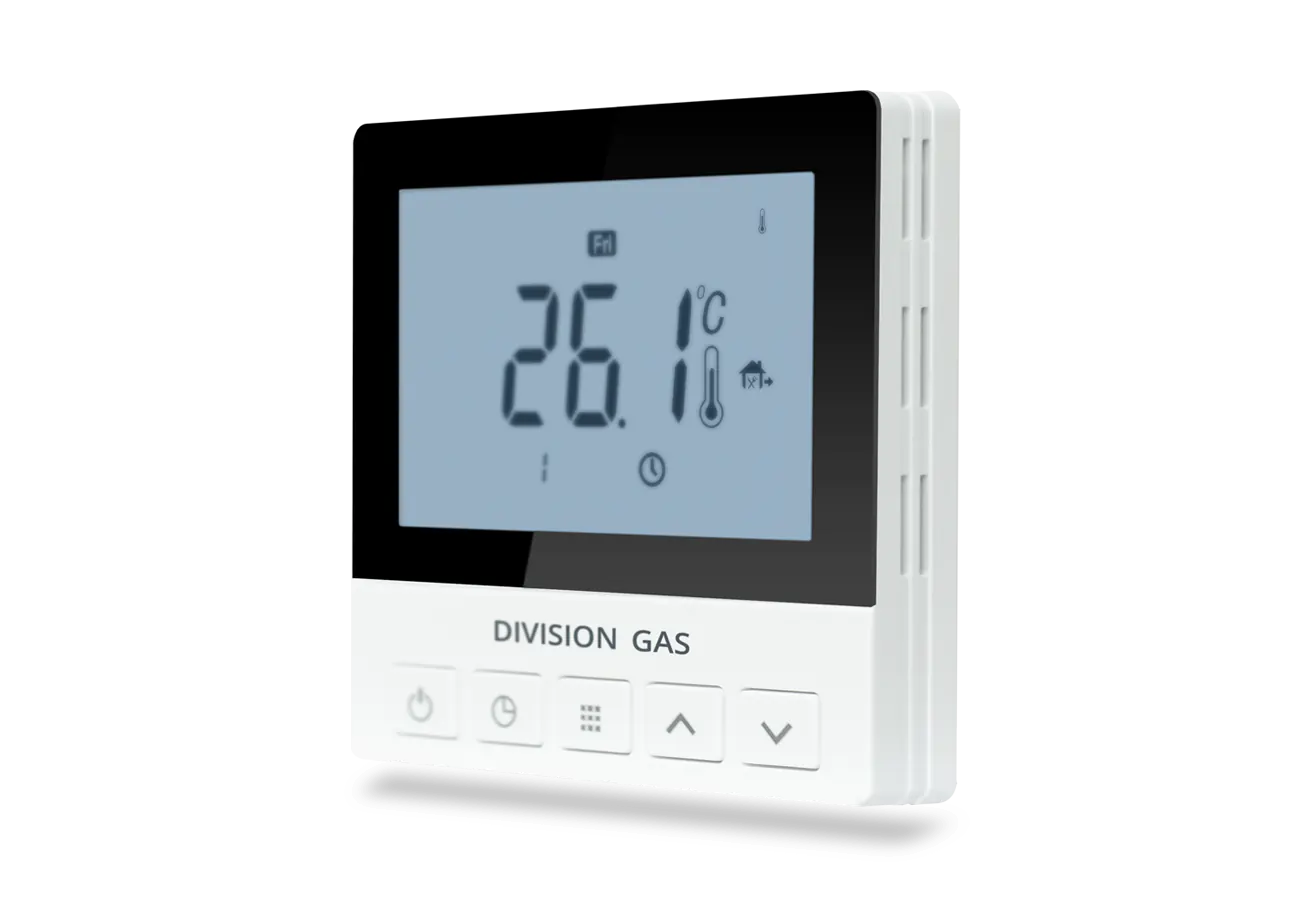

The DG921 is a programmable thermostat for the automation of underfloor heating with thermal agent. The programmable thermostat is compatible with normally closed and normally open actuators.
Use this floor thermostat to create a personalised heating schedule every day of the week. Save monthly with smart adaption function Enjoy easy operation thanks to the generous, permanently illuminated display.
Informations
Functions
Illuminated or not? You choose!
The DG921 allows you to choose how long the screen will be illuminated - permanently, temporarily (for ten seconds after a key press) or completely off.
Warm up as you like!
Choose when to turn heating on and off - you have up to ten hysteresis options available with the DG921.
Less spending
DG921 can be used with normally closed and normally open actuators - just choose the type of actuator used from the thermostat menu.
Smart recovery
The programmable thermostat analyses thermal behaviour over the last five days. So it will turn on the heating earlier so that at the set time you have the temperature set for you.
Specifications
Usage
Underfloor heating
Type
Programmable
Thermostat power supply
230VAC 50/60Hz
Connection
Wired
Thermostat display
Illuminated LCD
Size
86 x 86 x 13 mm
Brand
Division Gas
Thermostat relay
250 VAC 3 (2) A
Available working modes
Manual, Temporary hold, Scheduled
Available programs
5 + 1 + 1, 5 + 2, Daily programming
Temperature scale
ºC
Temperature setting interval
5 ºC ... 50 ºC
External sensor temperature setting interval
0 ºC ... 90 ºC
Temperature setting step
0.5 ºC
Hysteresis
0.5 ºC ... 5 ºC
Hysteresis setting step
0.5 ºC
Display illumination period
Off, Permanent, On at key press
Aditional features
Pump protection in power plant, Frost protection
Colour
White
Warrnaty
3 years
Frequent questions
Why does the DG921 screen display "HI"?
The temperature detected by the floor sensor is above the limit of the highest temperature set in "Out" or "All" mode, therefore the thermostat will switch off the heating.
The DG921 display shows "LO", why?
The temperature read by the floor sensor is below the lowest temperature limit in the "Out" or "All" mode. This is why the DG921 will start heating until the floor temperature is above the set limit.
The temperature read by the floor sensor is below the lowest temperature limit in the "Out" or "All" mode. This is why the DG921 will start heating until the floor temperature is above the set limit.
Your floor temperature sensor is short-circuited or faulty and your thermostat has turned off the heating. Contact the technical department for verification.
With the thermostat on I pressed and held the middle button to access "Program" mode, but the floor thermostat does not take over, why?
To use the underfloor heating thermostat in "Scheduled" mode, change the "PSI" option in the setup menu - choose "7" for programming for every day of the week, "3" for Monday to Friday programming with Saturday and Sunday separately or "2" for Monday to Friday and weekend programming.
The screen lighting is turned off after a short time, why?
From the DG921 thermostat setup menu, select "3" for continuous display illumination
Wired thermostats
DG921
Product code:
3710679
Programmable thermostat for underfloor heating, in dose, wired control.
- Illuminated or not? You choose!
- Warm up as you like!
- Less spending
- Smart recovery
